The INTECAMP EC-PF1 brings the warmth and visual appeal of a campfire into a compact format that is easier for retailers to stock and simpler for campers to transport. Its round metal fire bowl produces up to 60,000 BTU per hour in the standard reference configuration, while a lockable hard lid closes over the bowl and provides an integrated carry handle for vehicle-based travel.
Instead of requiring firewood, the EC-PF1 connects to an external propane cylinder through a 10-foot braided stainless-steel hose and adjustable regulator. Natural lava rock spreads the flame across the bowl and creates a fuller fire pattern. The removable grill grate adds a second use case for buyers building camping, tailgating or RV accessory ranges.
This model is intended for importers, outdoor brands, distributors, wholesalers, RV and overland suppliers, patio retailers and private-label programs. Gas connection, regulator pressure, rated input, product markings and the applicable conformity route are configured for the destination market before production.

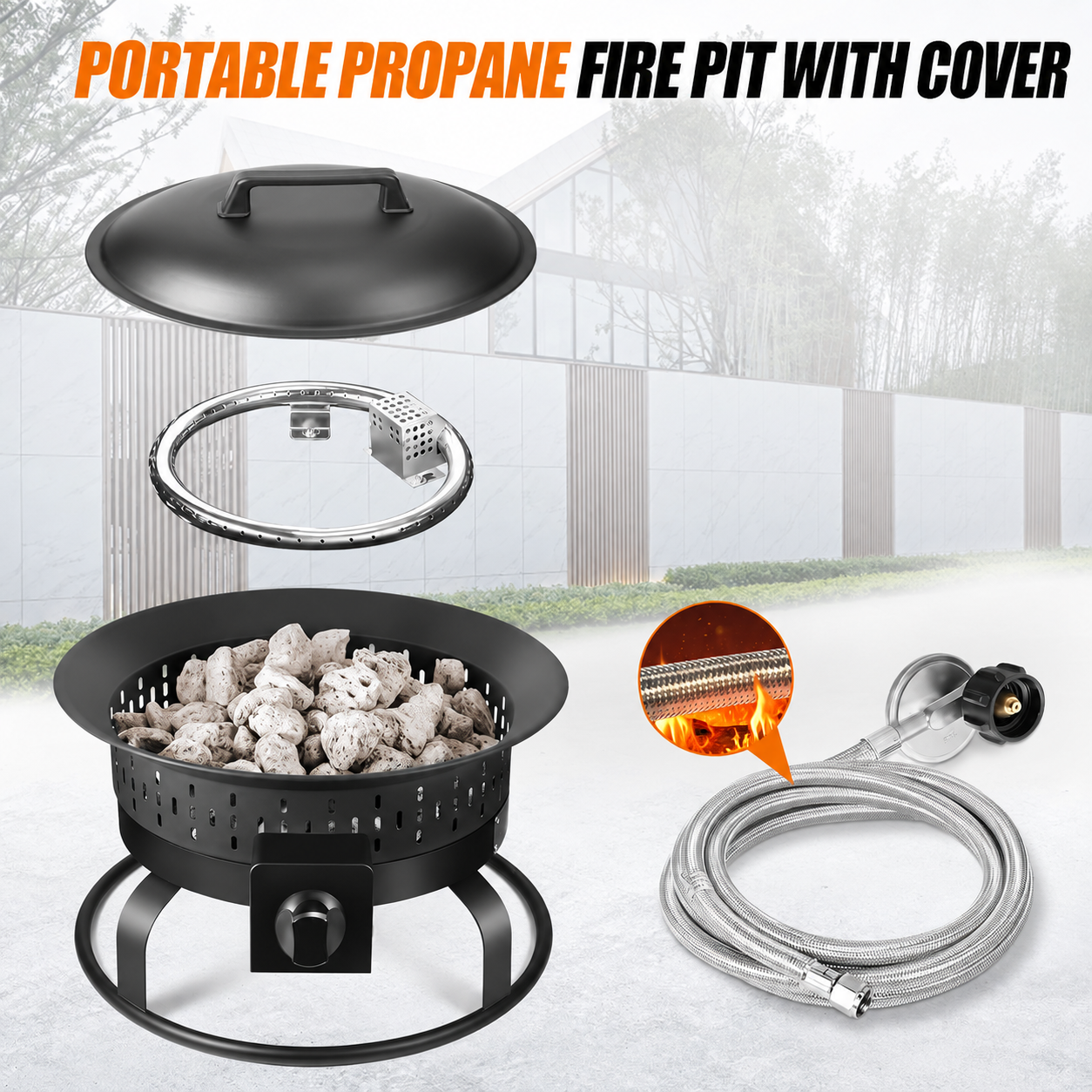

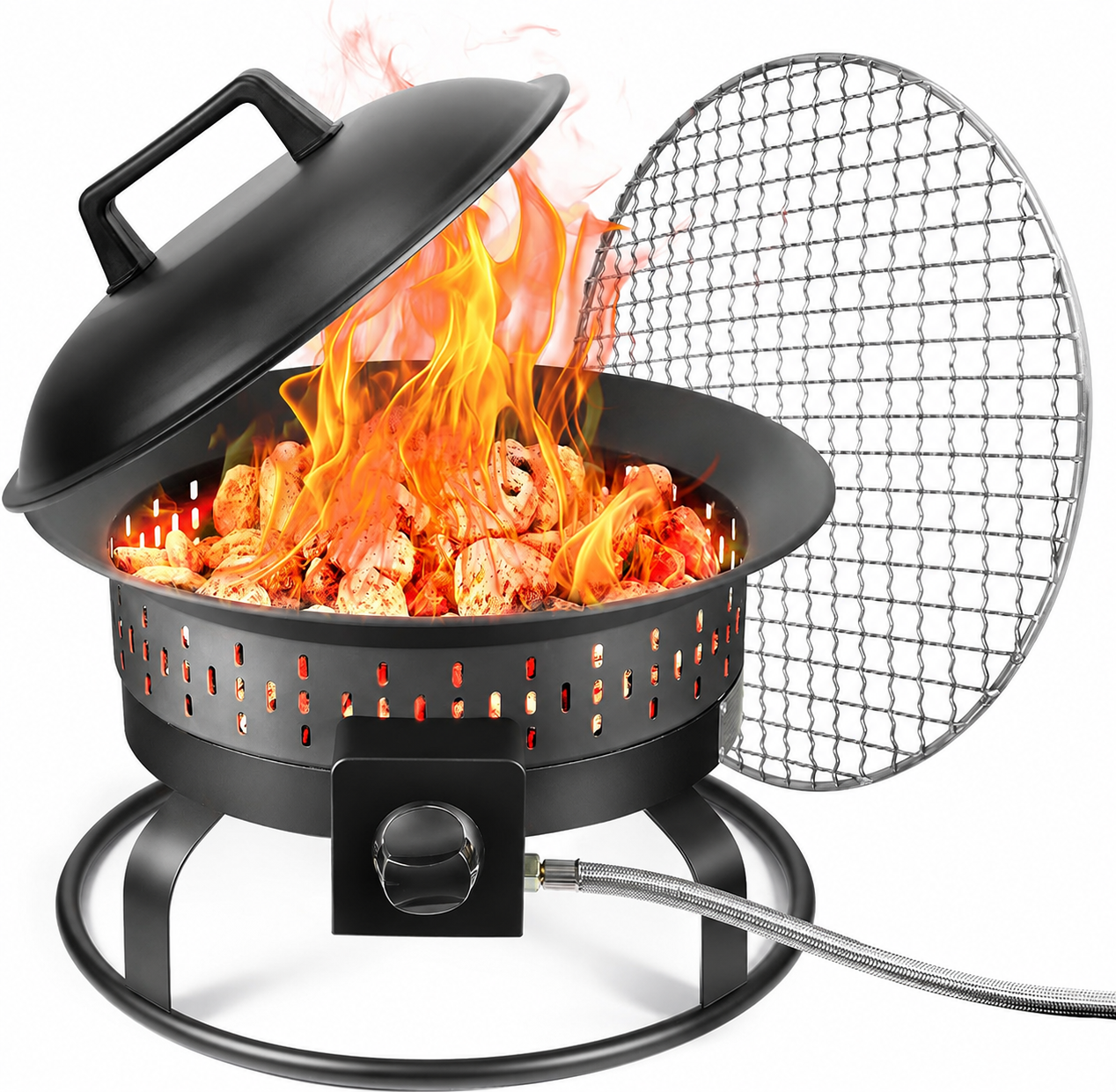

EC-PF1 at a glance
19-inch / approximately 48 cm round fire bowl
Up to 60,000 BTU/h, approximately 17.6 kW, in the standard reference configuration
Lockable hard lid with integrated carry handle
Removable grill grate included in the standard configuration
Piezo ignition and adjustable flame control
10 ft / approximately 3.05 m braided stainless-steel gas hose
Approximately 4.8 lb / 2.18 kg of natural lava rock
Designed around an external 20 lb propane cylinder for the North American configuration
Approximate product weight: 9.0 kg, subject to the final accessory pack
OEM color, branding, packaging, manuals and selected functional changes available
Propane eliminates the need to buy, carry and store firewood. It also avoids wood ash, flying embers and the heavy smoke that can make a traditional fire uncomfortable around a campsite. The result is a cleaner setup and a faster pack-down for car campers, RV users and patio customers.
The EC-PF1 should still be described accurately: it is wood-smoke-free during correct combustion, not emission-free. It is an outdoor gas appliance and must never be used in a tent, vehicle, enclosed porch, garage or other enclosed space.
The standard EC-PF1 configuration is designed for a maximum nominal input of 60,000 BTU/h. A fully adjustable regulator lets the user reduce the flame for a quiet evening or increase it when a larger flame bed is wanted. The final nameplate rating is determined by the approved burner, valve, injector and regulator combination supplied for the destination market.
Loose lava rock and an exposed burner make many fire bowls awkward to move. The EC-PF1 uses a lockable hard cover with an integrated handle, turning the bowl into a more manageable single unit for loading into an SUV, pickup, caravan or RV storage compartment.
The lid is a transport and storage cover. It must be removed before lighting and must not be refitted until the appliance and lava rock are completely cool. For long-term outdoor storage, a separate weatherproof soft cover is recommended.
The supplied 10-foot hose allows the propane cylinder to be positioned away from the hot bowl while keeping the control connection accessible. For wholesale programs, hose length, regulator type, inlet pressure and cylinder connector are matched to the approved market configuration; they are not universal across North America, Europe, the UK and Australia.
Approximately 4.8 lb of natural lava rock is supplied with the standard set. The porous rock breaks up the burner outline and helps create a more natural-looking flame across the bowl. It is packed separately to protect the burner, coating and carton during transport.

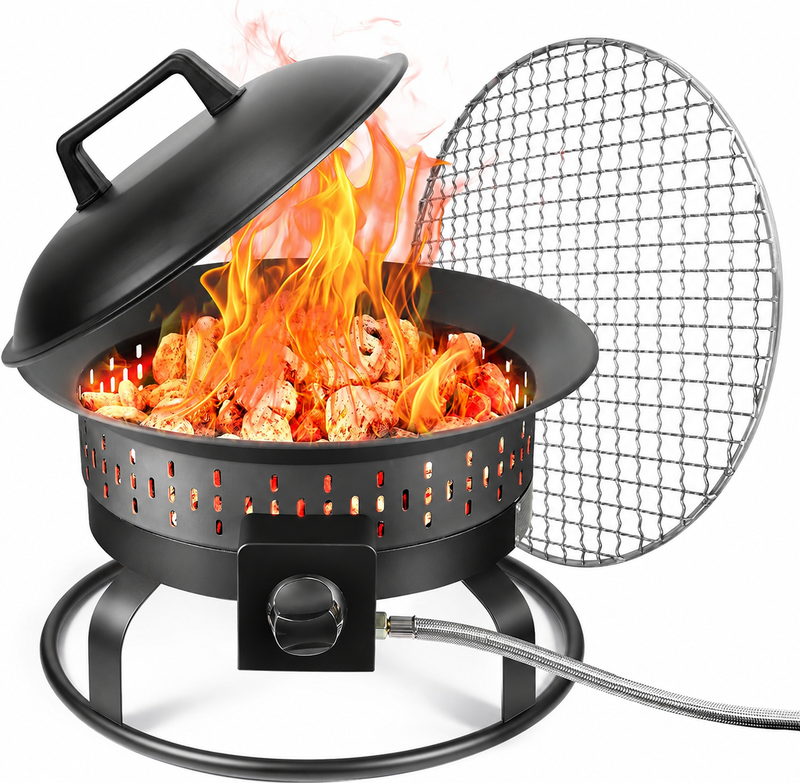

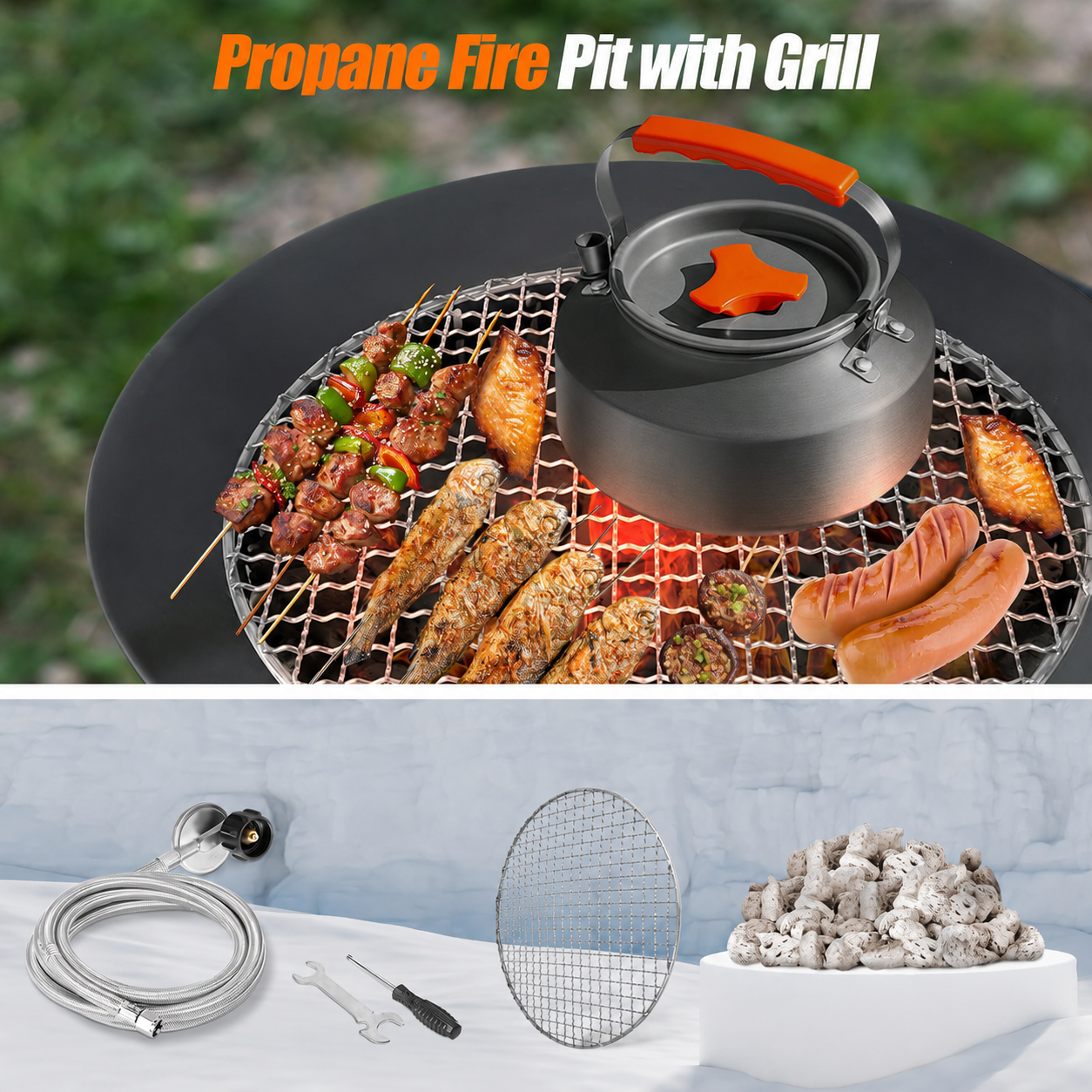

The standard EC-PF1 includes a removable metal grill grate. That makes the product relevant to camping cookware, tailgating and outdoor-living assortments as well as fire-pit ranges. Buyers should decide at the start of a project whether the product will be sold as a decorative outdoor gas appliance, a cooking appliance or a dual-purpose product. That decision affects grate materials, food-contact documentation, instructions, warnings and the required test plan.
At approximately 48 cm in diameter, the bowl is large enough to create a convincing circular flame bed but compact enough for car camping and vehicle-based travel. The 28 cm overall height keeps the flame raised above the ground without turning the product into a bulky patio unit.
The standard reference configuration provides a nominal maximum input of 60,000 BTU/h, or approximately 17.6 kW. Flame height is controlled through the supplied regulator. Final rated input may change with destination-market gas pressure, injector size and certification requirements.
The integrated piezo system provides push-button ignition without requiring loose matches. Ignition reliability, electrode position and flame carry-over are checked during production inspection.
The approximately 3.05 m hose gives users room to position the cylinder away from the fire bowl. Its metal braid offers additional protection against abrasion and incidental contact, but the hose must still be routed away from hot surfaces, sharp edges and walking paths.
The hard lid closes over the fire bowl for transport and short-term storage. Latches help keep the set together, and the central handle gives the user a clear lifting point. Lid fit, latch engagement and handle security are inspection points for every production lot.
The grate can be removed when the unit is being used only as a fire feature. For cooking-focused retail programs, the grate material, surface finish and food-contact declaration should be specified in the purchase order and confirmed by the approved sample.
The standard pack includes approximately 2.18 kg of lava rock. Rock size distribution, dust control and pack weight can be specified for private-label orders.
The EC-PF1 uses a formed metal fire bowl and metal support components. Steel grade, sheet thickness, burner material, fastener specification and surface finish are fixed in the signed specification sheet before mass production rather than being described only as “metal.”
Specification | EC-PF1 Standard Reference Configuration | B2B Configuration Note |
|---|---|---|
Product name | Portable Propane Fire Pit with Cover | Retail name and packaging text can be customized |
Model | EC-PF1 | Use this model on RFQ, sample approval and inspection documents |
Product type | Portable outdoor propane fire bowl with removable grill grate | Heating-only version can be quoted separately |
Intended environment | Outdoor use only | Never for tents, vehicles or enclosed spaces |
Shape | Round | — |
Overall dimensions | Approx. 19 in D × 19 in W × 11 in H / 48 × 48 × 28 cm | Final drawing governs production tolerance |
Approximate product weight | 9.04 kg / 19.9 lb | Final net and gross weight depend on accessory and packing configuration |
Nominal maximum heat input | Up to 60,000 BTU/h / approx. 17.6 kW | Final rating depends on gas pressure, injector and approved market version |
Fuel | Propane / LPG | Gas family and supply pressure must be specified by destination country |
Ignition | Piezo ignition | Manual-lighting backup, if required, must be defined in the final design |
Flame control | Adjustable regulator with control knob | Valve and regulator specification are market-specific |
Hose | Approx. 10 ft / 3.05 m, braided stainless-steel outer protection | Connector, markings and pressure rating confirmed for each market |
North American cylinder reference | Standard 20 lb propane cylinder | Cylinder is not included; connector must be confirmed before production |
Flame media | Approx. 4.8 lb / 2.18 kg natural lava rock | Packed separately; grading and pack weight can be customized |
Cover | Lockable hard lid with integrated carry handle | Remove before operation; refit only after complete cooling |
Grill grate | Removable grate included in standard set | Material and food-contact requirements confirmed per project |
Main construction | Formed metal body and support components | Steel grade, gauge and burner material stated in final technical sheet |
Standard color | Black | Custom color and finish subject to heat-zone validation and MOQ |

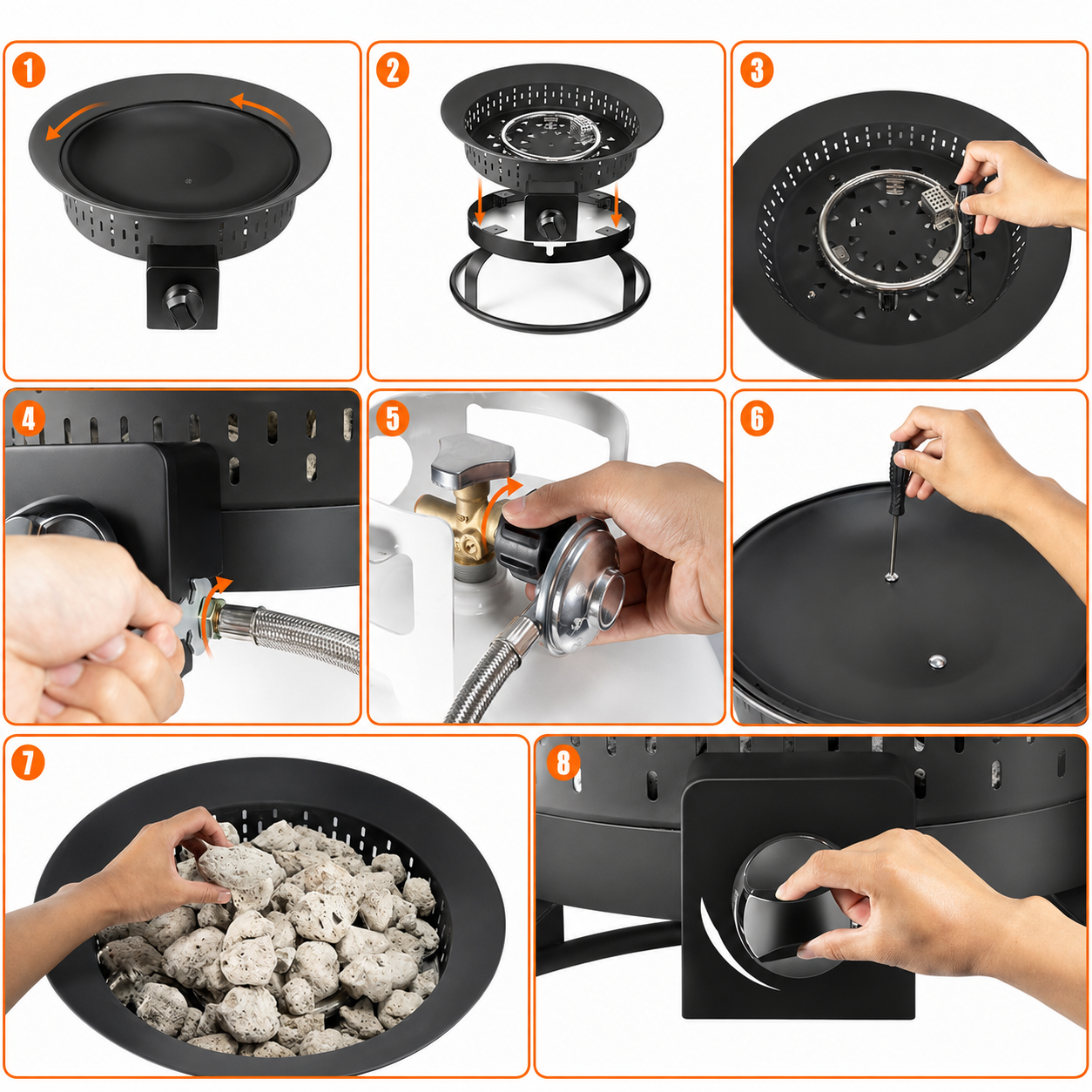

Assembly | Minimal user setup | Final assembly steps shown in the market-language manual |
Propane cylinder | Not included | State clearly on carton, listing and manual |
Soft carry bag | Not included in the base set | Available as an optional retail-bundle component |
Compliance status | Project-specific | No certification claim is made until the exact model and gas train have passed the applicable assessment |
Specification note: The figures above define the EC-PF1 standard reference configuration. The signed quotation, approved sample, final drawings, bill of materials, destination-market gas data and inspection standard take precedence for each production order.
Component | Base EC-PF1 Set | Notes |
|---|---|---|
Round fire bowl assembly | Included | Burner and gas train installed to the approved configuration |
Lockable hard lid with carry handle | Included | Transport/storage cover only |
Removable grill grate | Included | Heating-only bundle available on request |
10 ft braided stainless-steel hose | Included | Market-specific connector and markings |
Adjustable regulator | Included | Pressure and connector matched to destination market |
Natural lava rock | Approx. 4.8 lb / 2.18 kg | Packed separately |
User and safety manual | Included | Language, importer details and warnings customized as required |
Propane cylinder | Not included | Sourced by the end user in the destination market |
Soft carry/storage bag | Optional | Not part of the base configuration |
Cylinder stabilizer | Optional | Specify cylinder format before quotation |
The hard lid and round 19-inch format suit customers who carry their equipment by SUV, pickup or estate car. Setup does not depend on finding dry firewood, and cleanup is limited to cooling, inspection and repacking rather than ash disposal.
For RV accessory retailers, the EC-PF1 offers a clear add-on product beside portable kitchens, outdoor tables and gas accessories. The extended hose supports a practical layout outside the vehicle, provided the unit is used in a fully open, ventilated area and the manual clearances are followed.
Adjustable flame control makes the model useful for pre-game gatherings and temporary outdoor events. Rental operators should add pre-use hose inspection, leak checking, post-use cooling and lava-rock inventory to their turnaround procedure.
The visible lava-rock flame also works in outdoor-living assortments. Retailers can differentiate the product from a fixed patio fire table by emphasizing its compact footprint, removable grate and hard carry lid.
Hospitality buyers can use a controlled gas appliance as part of a managed outdoor guest area, subject to local rules, supervision and site risk assessment. Local authorities may restrict propane appliances during high-risk periods, so the EC-PF1 must never be promoted as universally exempt from fire bans.
A portable propane fire pit is not a single worldwide specification. Before tooling, samples or packaging are approved, buyers should lock the following points:
Declared use: decorative heat, outdoor cooking or dual-purpose use.
Destination countries: gas families, supply pressures, cylinder connectors, labels and instructions vary by market.
Rated input: retain the 60,000 BTU/h reference rating or adjust the burner, injector and regulator for the target market.
Grill configuration: standard grate, food-contact compliant grate, or heating-only set.
Retail bundle: lava-rock weight, hard lid, soft carry bag, cylinder stabilizer and spare parts.
Required assessment: applicable regulation, standard, third-party test scope and factory surveillance requirements.
Packaging channel: e-commerce parcel, wholesale master carton, retail display carton or palletized store delivery.
Resolving these points early prevents a common sourcing mistake: approving the appearance of a fire pit before the gas train and declared use have been defined.
INTECAMP can develop the EC-PF1 as a branded retail SKU or use it as a starting platform for a wider outdoor-heating range.
Laser-marked, printed or metal-badge logo placement
Custom body and lid colors, subject to heat-zone validation
Brand-specific control graphics and warning labels
Custom product name and model-number system
Coordinated colorways for camping kitchen and fire-pit collections
Destination-market hose, regulator and cylinder connection
Alternative nominal heat input, subject to engineering review and testing
Heating-only or grill-grate bundle
Alternative grate material or finish for cooking-focused ranges
Custom lava-rock grade and pack weight
Soft storage bag, cylinder stabilizer or accessory kit
Selected dimensional or handle changes after feasibility review
Full-color retail carton or plain export carton
Barcode, SKU, importer and country-of-sale labeling
Multilingual manual and quick-start guide
E-commerce protective insert and accessory compartment layout
Replacement-part list and after-sales documentation
Pallet pattern and container-loading plan
Changes to the burner, valve, injector, regulator, hose, grate or declared use may require a new conformity assessment or additional testing. They should therefore be treated as engineering changes, not cosmetic options.
Where the EC-PF1 is marketed as an outdoor decorative gas appliance, buyers and their test laboratory should review the current scope of ANSI Z21.97-2017 (R2022) / CSA 2.41-2017 (R2022) and any other rules applicable to the final design and sales channel. Cylinder connection, regulator, hose markings, rated input, clearances, stability, ignition, combustion and warning labels must all belong to the tested configuration.
Gas appliances placed on the EU market fall within Regulation (EU) 2016/426 on appliances burning gaseous fuels when the product is within its scope. The exact gas category, supply pressure, injector, regulator, technical file, markings, instructions and conformity-assessment route must be set for the intended Member State or States. A CE mark should only be used after the exact EC-PF1 market version has completed the applicable assessment.
The importer should define the applicable local approval route with an accredited test body before mass production. A North American regulator or cylinder fitting should never be assumed to work in another country simply because the fuel is also described as propane or LPG.
Adding a grill grate can change the claims, user behavior and compliance scope. If cooking is part of the intended use, the project should define the grate material, food-contact requirements, grease management, cleaning instructions and relevant cooking-appliance tests. If the product is to be sold only as a decorative outdoor fire feature, cooking claims and cooking imagery should be removed.
Important: Certification, approval and conformity claims are model- and market-specific. They must be supported by documents that identify the same construction, gas train, rating and model supplied in the order.
The EC-PF1 inspection plan can be aligned with the buyer’s approved sample, critical-to-quality list and destination-market test requirements. Recommended controls include:
Incoming inspection of sheet metal, burner components, fasteners, hose and regulator
Verification of metal thickness, formed dimensions and assembly fit
Coating appearance and adhesion checks outside the direct-flame zone
Burner, injector, valve and regulator part-number verification
Gas-path leak testing on every finished unit using the approved procedure
Piezo ignition function and electrode-position inspection
Flame carry-over and visual flame-pattern check at specified pressure
Control-knob operation and high/low flame response
Hose routing, marking, connector fit and protective-braid inspection
Stability and tip-risk review on a level test surface
Lid fit, latch engagement and carry-handle security
Grate fit and finish inspection
Lava-rock pack-weight and accessory-count verification
Rating-label, warning-label, manual and carton cross-check
Carton protection and drop-test protocol when included in the buyer’s quality agreement
A signed golden sample and controlled bill of materials should be retained before production. Component substitutions in the gas train should require written approval and, where necessary, re-evaluation by the test body.
The hard lid gives the EC-PF1 a naturally compact pack, but the internal layout still matters. A suitable export pack should:
Bag the lava rock separately so dust and movement do not damage the burner or finish
Isolate the regulator, hose and control components from the metal bowl
Prevent the grill grate from rattling against coated surfaces
Protect the piezo electrode from impact
Keep the instruction manual and loose hardware visible when the carton is opened
Carry clear “propane cylinder not included” and outdoor-use warnings
Use a tested insert design for parcel-shipping programs
Carton dimensions, gross weight, units per pallet and container quantity are confirmed after the approved sample and final accessory bundle are packed. This is more reliable than estimating logistics from the bare fire-bowl dimensions.
Commercial Item | EC-PF1 Policy |
|---|---|
Sample | Evaluation sample available after configuration review |
MOQ | Confirmed by gas configuration, color, packaging and certification scope |
Sample charge | Quoted against the selected configuration and tooling requirement |
Sample lead time | Confirmed after drawings, gas data and accessory list are approved |
Mass-production lead time | Confirmed after sample approval, packaging sign-off and order quantity are fixed |
Private-label packaging | Available subject to artwork approval and packaging MOQ |
Inspection | Buyer inspection or agreed third-party inspection can be arranged before shipment |
For an accurate quotation, send the destination country, annual forecast, first-order quantity, required heat input, intended use, cylinder connection, certification requirement, logo file, packaging format and desired accessories.
For outdoor use only in a fully open and well-ventilated area.
Never use inside a tent, RV, vehicle, garage, enclosed patio or other enclosed space.
Keep the appliance, hose and cylinder clear of combustible materials according to the approved manual.
Inspect the hose, regulator and connections before every use.
Perform the specified leak check after connecting the cylinder; never check for leaks with a flame.
Keep the hose away from the hot bowl, sharp edges and foot traffic.
Do not move the fire pit while it is lit or hot.
Remove the hard lid before lighting.
Allow the bowl, grate and lava rock to cool completely before covering, carrying or packing.
Use only the fuel, cylinder, regulator and pressure stated on the product rating label.
Do not use third-party conversion kits unless the converted appliance has been engineered and approved for that fuel.
Keep children and pets away from hot surfaces.
Check current campsite, municipal and regional fire restrictions before use. Propane appliances are not automatically permitted during every fire ban.
The EC-PF1 is a 19-inch portable propane fire pit with a lockable hard cover, carry handle, adjustable flame, piezo ignition, long regulator hose, lava-rock set and removable grill grate. It is developed for wholesale, OEM and private-label outdoor product programs.
The standard reference version is rated for a nominal maximum input of up to 60,000 BTU/h, approximately 17.6 kW. The final nameplate rating depends on the approved injector, burner, regulator pressure and destination-market gas configuration.
No. For the North American reference configuration, the fire pit connects to a standard external 20 lb propane cylinder, but the cylinder is purchased locally by the end user. Other markets require their own approved cylinder connection and regulator setup.
No. The standard “cover” is a lockable hard lid with an integrated carry handle. A soft weather or storage bag can be developed as an optional accessory.
No. Remove the lid before lighting. Refit it only after the appliance and lava rock are completely cool.
No. It is strictly an outdoor appliance and must only be used in a fully open, well-ventilated location with the required clearances from combustible materials.
Correct propane combustion does not create wood smoke, ash or flying embers. It still produces hot combustion gases, including carbon monoxide, which is why outdoor-only use is mandatory.
Only when the responsible local authority permits that type of propane appliance under the current restriction. Rules vary by location and conditions, so the product should not be advertised as automatically legal during all fire bans.
The standard configuration includes a removable grate. If the product is marketed for cooking, the final grate material, food-contact documentation, instructions and applicable compliance testing must be included in the buyer’s project scope.
No. Cylinder valves, connectors, LPG categories and supply pressures vary. INTECAMP configures the gas hose and regulator after the destination market and applicable requirements have been confirmed.
Natural gas is not part of the standard EC-PF1 configuration. Any alternative-fuel version must be separately engineered, rated, labeled and assessed. End users should not install an unapproved third-party conversion kit.
Yes. Logo application, product color, labels, manuals, barcode artwork, retail cartons and selected accessories can be developed for private-label orders. Functional changes are reviewed separately because they may affect testing and approval.
They depend on the gas-system configuration, coating color, packaging, certification scope and order quantity. Send the target country and proposed purchase volume for a project-specific quotation.
