A rocket stove is useful because it does not ask campers to carry a fuel cylinder, regulator or hose. Give it dry sticks, a stable cooking surface and enough airflow, and its enclosed vertical burn path turns a small fire into concentrated cooking heat.

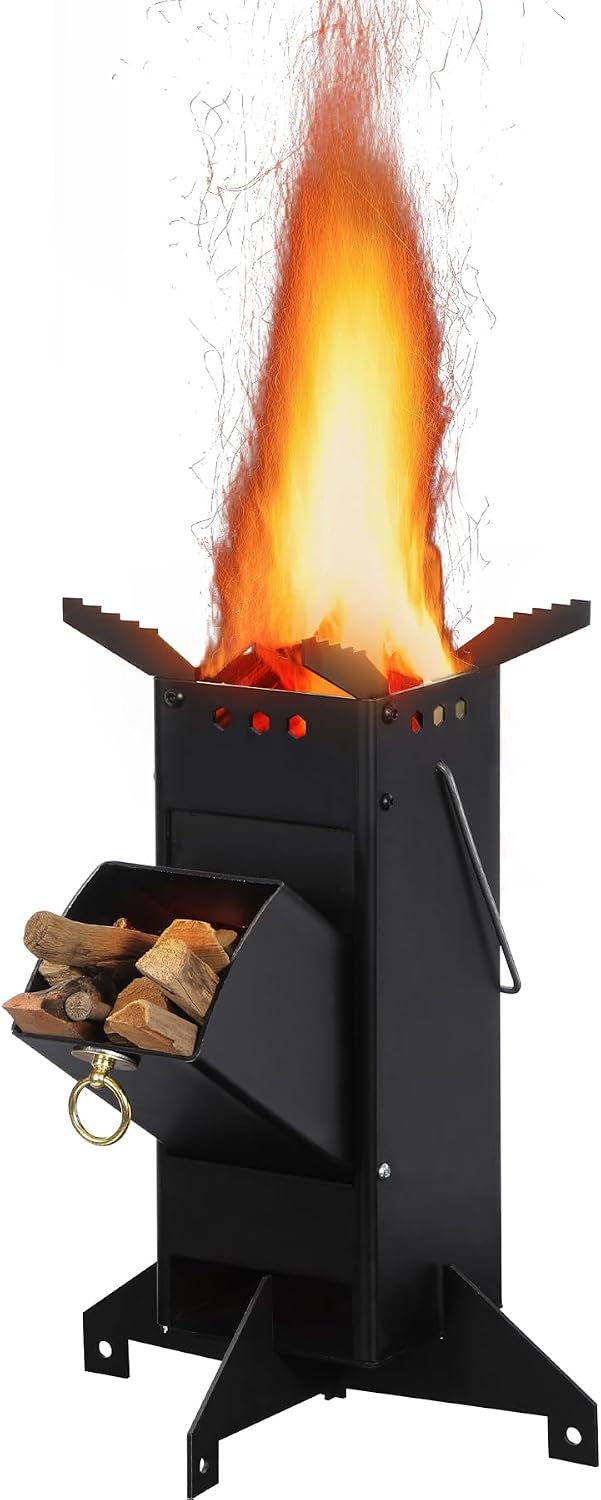

EC-PRS-1 is designed for that straightforward job. Its narrow steel body combines a side fuel-feed chamber with a vertical chimney section. Air enters near the fuel, the flame is drawn through the internal passage, and hot gases rise directly toward the base of the pot. The arrangement shelters more of the fire than an open campfire and allows the user to keep feeding short pieces of wood without lifting the cookware.
The stove is made from approximately 1.8 mm heavy-gauge steel and uses folding supports to reduce its transport footprint. At about 5.62 lb in the reference configuration, it is portable enough for car camping, overlanding, RV travel, picnics and emergency kits, while remaining substantially more rigid than an ultralight sheet-metal twig stove.
For outdoor brands and distributors, EC-PRS-1 offers a clear retail proposition: a reusable solid-fuel cooker, no proprietary cartridge, simple mechanical construction and room for private-label finishes, bags, packaging and accessory bundles.
Item | EC-PRS-1 |
|---|---|
Product name | Portable Rocket Stove for Camping |
Model | EC-PRS-1 |
Stove type | Single-burner, natural-draft rocket stove |
Main fuel | Dry wood, sticks and twigs |
Secondary fuel | Lump charcoal where permitted and used according to the manual |
Main material | Approx. 1.8 mm heavy-gauge steel |

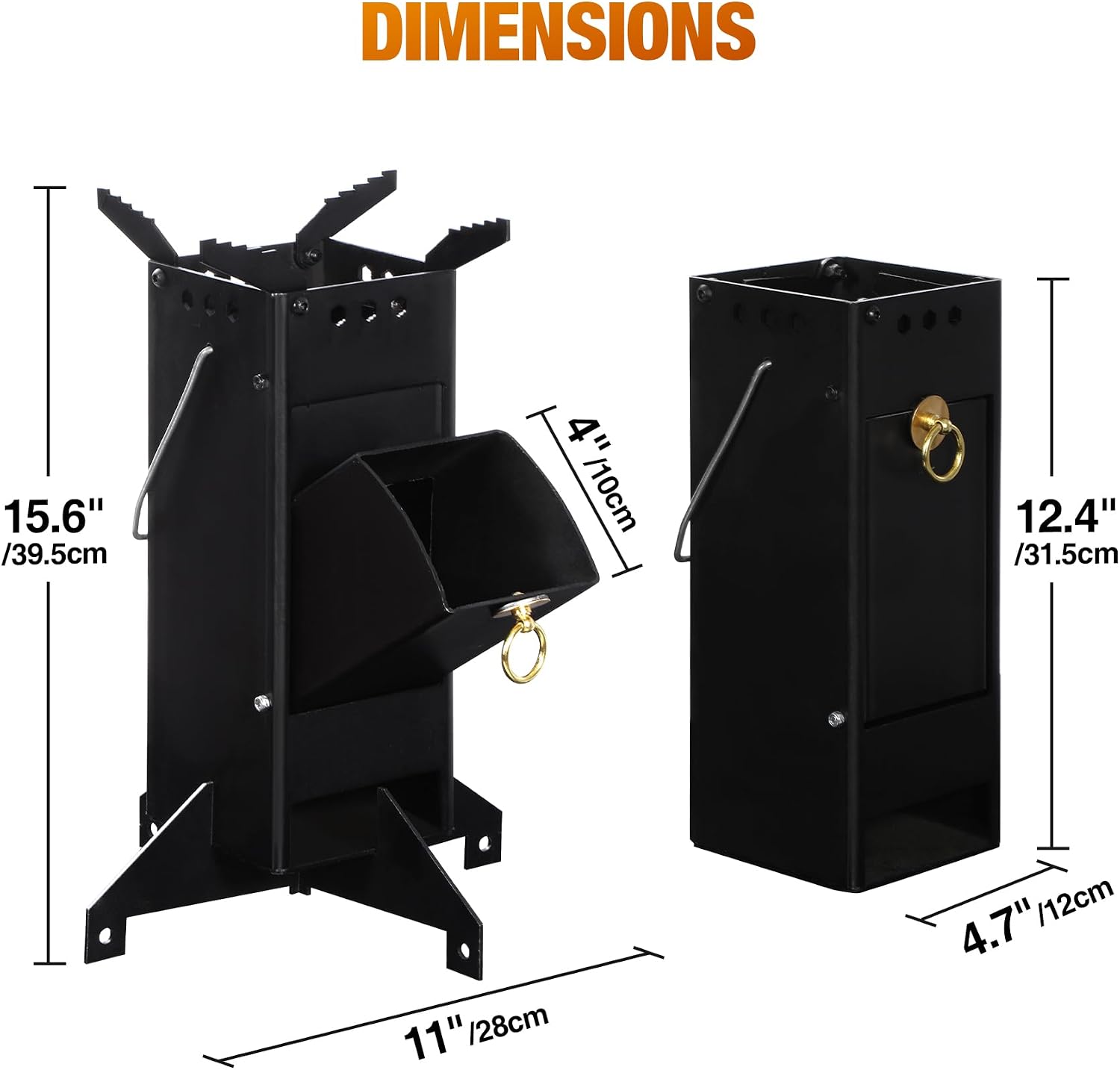

Assembled body size | Approx. 119 × 119 × 315 mm / 4.7 × 4.7 × 12.4 in |
Reference net weight | Approx. 2.55 kg / 5.62 lb; final sample to confirm |
Reference static downward load | Up to 59 kg / 130 lb under controlled test conditions; not a recommended cookware weight |
Power source | Solid fuel; no gas, electricity, fan or battery |
Transport | Folding supports with fitted carry bag |
Intended use | Outdoor cooking, car camping, overlanding, picnics and emergency preparedness |
Supply model | Wholesale, OEM, ODM and private label |
The term “rocket” refers to the draft created by a compact combustion tunnel and vertical riser. It does not mean the stove contains a powered burner.
In EC-PRS-1, fuel is introduced through the side chamber. As it burns, hot gases move into the vertical section and accelerate upward. This natural chimney effect pulls fresh air toward the burning end of the wood and concentrates the flame beneath the cookware.
The process has four practical advantages:
The flame is directed toward the pot rather than spreading across the ground.
Short sticks can be added through the side feed while the cookware remains in place.
The enclosed path gives the flame some protection from light wind.
A relatively small amount of dry fuel can maintain useful cooking heat.
Performance still depends on the user. Wet wood, an overfilled chamber, excessive ash or a pot placed so tightly that exhaust cannot escape will weaken the draft and create smoke. EC-PRS-1 is an efficient solid-fuel layout, not a zero-smoke or fixed-output burner.
The reference construction uses steel approximately 1.8 mm thick. This adds weight compared with a flat-pack titanium stove, but it also makes the body more resistant to cookware loads, knocks during transport and distortion from repeated heat cycles.
That trade-off matters to B2B buyers. EC-PRS-1 is better positioned as a durable camp, basecamp and emergency stove than as an ultralight trekking accessory.
The side opening allows the user to add sticks during cooking. Long pieces can be advanced gradually as their inner ends burn, which reduces the need to cut every piece into very short sections.
Fuel should remain controlled and supported. Branches must not project into walkways, and loose burning pieces must not be allowed to fall onto the ground.
The upper support is intended for flat-bottom pots, kettles, frying pans and suitably sized outdoor cookware. Open gaps around the pot allow the combustion gases to escape; blocking those gaps can reduce draft and increase smoke.
The quoted 130 lb figure is a reference static vertical-load result, not a suggestion that users place a 130 lb cooking vessel on the stove. Safe cookware size is governed by the stove’s footprint, ground condition, wind, handle position and centre of gravity. Pot stability must be validated separately with the cookware range intended for each retail program.
The external supports fold against the main body, reducing loose parts and making the stove easier to pack in its carry bag. The steel chimney remains a compact vertical form rather than breaking down into a large number of thin panels.
This is useful for rental fleets and emergency kits, where missing assembly pieces are a frequent source of returns.
There is no cartridge interface or market-specific gas fitting. Users can cook with dry, locally available wood where solid-fuel fires are permitted. Retailers also avoid stocking multiple regulator or cylinder variants for different countries.
Specification | EC-PRS-1 Reference Configuration |
|---|---|
Product type | Portable rocket stove for outdoor cooking |
Burner count | One |
Combustion type | Natural-draft, side-feed rocket combustion |
Main body dimensions | Approx. 119 × 119 × 315 mm / 4.7 × 4.7 × 12.4 in |
Net weight | Approx. 2.55 kg / 5.62 lb; subject to final weighing |
Main material | Heavy-gauge carbon steel |
Nominal steel thickness | Approx. 1.8 mm |
Standard colour | High-temperature black |
Optional colours | Selected high-temperature finishes, subject to heat-cycle approval and MOQ |
Fuel | Dry hardwood sticks, twigs, small branches and suitable lump charcoal |
Fuel-feed system | Side-entry chamber for continuous manual feeding |
Draft system | Enclosed vertical chimney using natural convection |
Pot support | Integrated or folding upper cookware support |
Base | Folding support structure for outdoor ground use |
Reference static load | Up to 59 kg / 130 lb downward load under controlled conditions |
Heat adjustment | Manual, by fuel quantity, fuel size and airflow management |
Ignition | Suitable solid fire starter and long lighter or match |
Power required | None |
Standard accessories | Carry bag and operating instructions |
Use environment | Outdoor use only |
Cooking application | Boiling, pan cooking, kettle heating and emergency meal preparation |
Specification control: All dimensions, weights, material grades, load claims, coating details and packed measurements must be confirmed against the approved EC-PRS-1 sample before publication or mass production.
EC-PRS-1 performs best with dry, split hardwood sticks. Pieces with a modest cross-section ignite more evenly and give the user better control than one oversized branch. As the inner ends burn, the sticks can be moved gradually into the chamber.
Dry twigs, small branches and pinecones may also be used where local rules permit. Lump charcoal can provide a steadier coal bed, although ignition and airflow behaviour differ from wood. Only use charcoal if the final EC-PRS-1 grate and instructions specifically support it.
Avoid wet wood, green vegetation and large quantities of loose leaves. They tend to smoulder, create smoke and restrict the air path. Never burn painted, pressure-treated, glued or chemically contaminated timber, plastic, rubbish or unknown fuel.
Liquid fuels such as gasoline, alcohol and lighter fluid must not be poured into the stove. They can pool inside the enclosed combustion path and flash unexpectedly.
A wood-burning rocket stove does not regulate heat with a dial. The user controls output through fuel preparation and feeding:
Thin, dry sticks ignite quickly and raise heat rapidly.
Slightly thicker hardwood burns longer and needs less frequent attention.
Fewer sticks and a smaller active flame reduce heat.
Removing unburned fuel ends carefully can slow the fire, but hot embers must remain contained.
Excess fuel can choke the air path rather than increase output.
The best cooking results come from preparing a supply of similarly sized fuel before lighting. Constantly searching for sticks while a pot is already on the stove leads to uneven heat and unnecessary smoke.

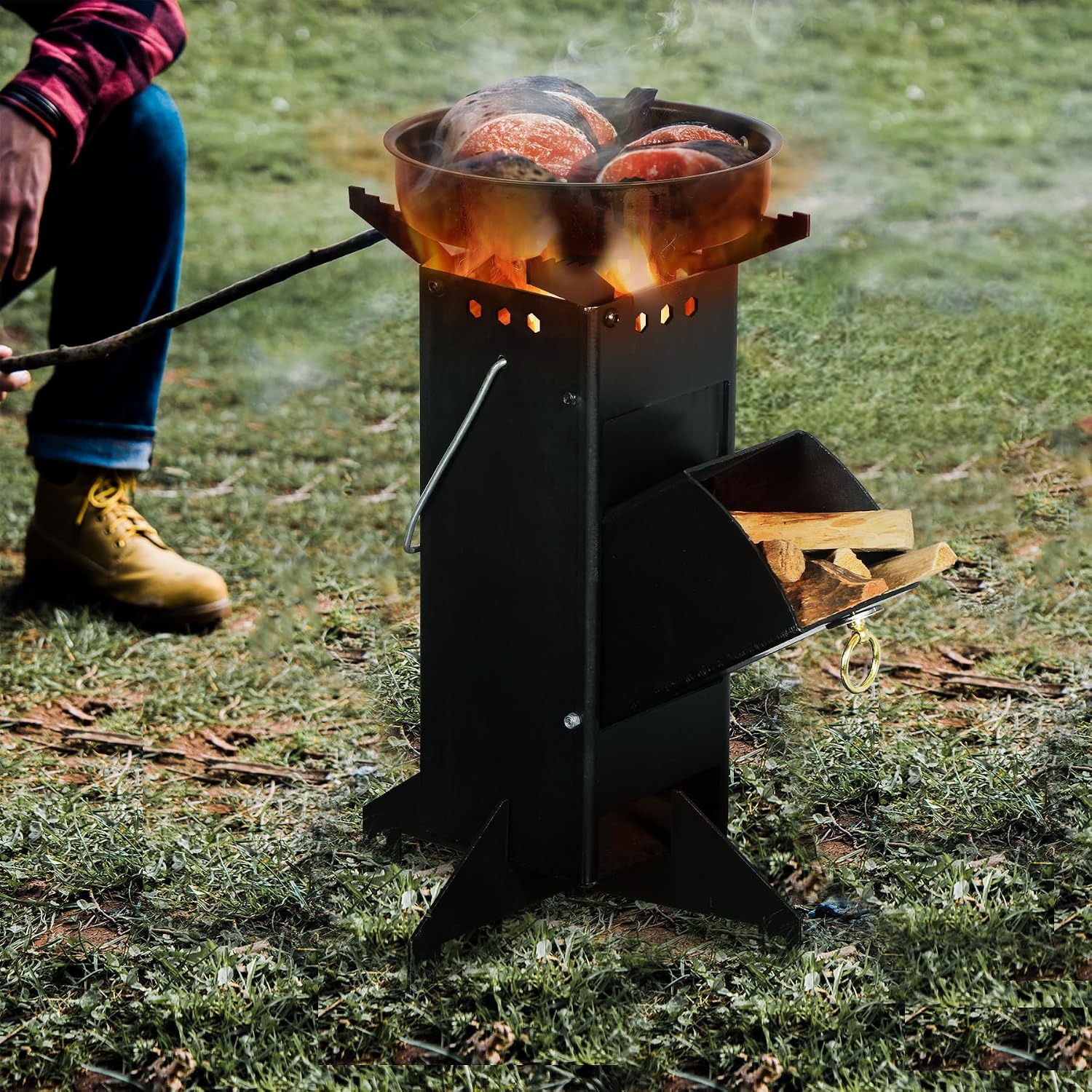

EC-PRS-1 is well suited to boiling water, heating a kettle, frying in a stable pan and cooking one-pot meals. Long, low-temperature simmering is possible with practice but is less precise than on a regulated gas stove. Wood flame will also leave soot on cookware, so retailers should set that expectation clearly.
Buying consideration | EC-PRS-1 rocket stove | Portable gas stove | Open campfire |
|---|---|---|---|
Fuel | Dry wood or approved charcoal | Compatible gas cartridge | Firewood |
Heat control | Manual fuel management | Fast valve adjustment | Difficult and variable |
Fuel hardware | No cylinder or regulator | Cylinder, valve and market-specific fitting | None |
Cooking focus | Concentrated one-pot heat | Controlled everyday cooking | Broad fire and ember cooking |
Transport | Steel stove and carry bag | Stove plus fuel canister | Minimal equipment but more firewood |
Soot on cookware | Expected | Low | Expected |
Fire-ban suitability | Often restricted | May be permitted in some areas | Commonly restricted |
Best fit | Car camping, overlanding and emergency kits | Campsites needing convenient control | Permitted sites with established fire areas |
The correct choice depends on local fire rules, trip length, available fuel and the type of cooking expected. Many retailers stock rocket and gas stoves as complementary products rather than direct substitutes.
Car camping and family campsites
SUV, 4x4 and overland travel
Campervan and RV accessory ranges
Bushcraft and outdoor-skills programs
Picnic and backyard cooking
Fishing, hunting and remote work camps
Emergency and disaster-preparedness kits
Outdoor education and supervised group activities
Camping equipment rental fleets
EC-PRS-1 is not a tent stove and does not include a flue for routing combustion gases outside an enclosure.
The standard EC-PRS-1 retail set can include:
Heavy-gauge steel rocket stove body
Side fuel-feed chamber
Folding upper cookware support
Folding base supports
Carry bag
Quick-start instructions
Full operating and safety manual
Individual retail carton
The final component list should be frozen in the approved sample, packing specification and purchase contract.
Customers immediately understand the value: cook outdoors with sticks instead of carrying a gas cylinder. Demonstration content can show the side-feeding process, chimney draft and compact packed form without relying on exaggerated performance claims.
The stove has no piezo igniter, hose, valve, seal, fan or electronic controller. Fewer technical components generally mean fewer compatibility questions and simpler spare-parts planning.
Retailers can pair the stove with a kettle, nesting pot, fire gloves, compact tool set, heat-resistant ground mat or fire-starting kit. Any food-contact or heat-control accessory should be separately specified and tested.
Emergency-preparedness, remote-work and outdoor-education customers widen the addressable market beyond seasonal leisure camping.
EC-PRS-1 can be supplied as a standard wholesale item or adapted for a retailer’s range.
Steel thickness and structural reinforcement review
Pot-support geometry for the buyer’s target cookware
Fuel-support rack or ash-management revisions
Handle, hinge and folding-support improvements
Optional heat-resistant ground shield
Accessory kits for camp cooking or emergency use
Any structural change should be followed by stability, load and combustion testing. Increasing the top support without widening the base, for example, may create the appearance of greater cookware compatibility while reducing real-world stability.
Laser-marked or permanently fixed logo
Custom metal badge outside the highest-temperature zone
Selected black, olive, sand or brand-matched high-temperature coating
Branded carry bag or woven label
Private-label carton, manual and quick-start card
Coating colours must be approved after repeated burn cycles. A room-temperature colour sample does not demonstrate adhesion, smoke behaviour or colour change at operating temperature.
Kraft or full-colour retail carton
Reinforced mail-order packaging
Internal protection against coating abrasion
Barcode, SKU and carton-mark preparation
Amazon FBA label support
QR code linked to assembly and fuel-loading instructions
English, French, German or Spanish manuals
Master-carton optimisation for pallet and container loading
MOQ, sample cost and lead time depend on the selected material, coating, accessories and packaging rather than the logo alone.
A practical EC-PRS-1 inspection plan can cover:
Steel grade and thickness verification
Main-body dimensions, squareness and chimney alignment
Fuel-feed opening and internal airflow clearance
Weld consistency and heat-affected areas
Deburring of all hand-contact and bag-contact edges
Folding-support fit and repeated open/close cycle checks
Ground contact and rocking check on a flat test surface
Pot-support levelness and cookware retention
Static downward-load test using the agreed fixture
Tip-stability trials with specified cookware sizes and fill levels
Combustion trial with an agreed dry-wood fuel specification
Thermal-cycle inspection for distortion and coating failure
Carry-bag fit, seam and handle check
Accessory count and packaging inspection
Pre-shipment inspection to the agreed sampling level
Load capacity, pot stability and thermal durability are separate questions. A stove can survive a high vertical load in a laboratory fixture yet still become unstable with a wide, water-filled pot outdoors. Procurement specifications should address all three.
Available B2B documentation can include:
Approved product specification sheet
Bill of materials for the ordered version
Dimensional and incoming-material records
Batch or date-code traceability
Operating, cleaning and safety instructions
Risk-assessment input for the destination market
Importer, responsible-person and country-of-origin label fields
Material or restricted-substance testing coordination on request
EU GPSR documentation support for relevant programs
Retailer-specific test and packaging reports where agreed
EC-PRS-1 is a non-gas, non-electric outdoor solid-fuel stove. Test scope and labelling still need to be agreed for each market. CE, UKCA or another conformity mark should never be added simply because a buyer requests a logo; the applicable legal route must first be established.
Use outdoors only in a well-ventilated open area.
Never operate inside a tent, vehicle, cabin, garage, gazebo or partly enclosed space. Wood and charcoal fires produce carbon monoxide.
Place the stove on level, firm and non-combustible ground.
Keep it away from dry grass, roots, leaves, tents, furniture, vehicles and overhead branches.
Confirm that all folding supports are fully opened and stable before lighting.
Keep upper exhaust gaps open after placing cookware.
Do not use oversized cookware that can tip the stove or place handles into a walkway.
Do not move or fold the stove while it is burning, hot or cooling.
Use heat-resistant gloves and long tools when tending fuel.
Never use gasoline, alcohol or another flammable liquid for ignition.
Do not leave the stove unattended.
Keep children, pets and loose clothing away from the fuel feed and hot surfaces.
Do not use during a fire ban or where wood and charcoal appliances are prohibited.
Extinguish and dispose of ash according to campsite and local fire regulations.
Pack the stove only after the body, ash and embers are completely cold.
Allow the stove to cool completely. Remove ash through the designated opening and place it in a fire-safe metal container. Brush soot and loose debris from the fuel path, pot support and folding joints.
Carbon steel should be stored dry. Wipe off moisture promptly and touch up damaged high-temperature coating with an approved product where the maintenance instructions allow. Surface discolouration, soot and minor heat patina are normal; deep corrosion, cracked welds, seized supports or severe distortion require inspection before the next use.
The carry bag is for a cold, cleaned stove only. Packing warm steel can damage the bag and create a fire risk.
A portable rocket stove is a compact solid-fuel cooker that directs flame through an enclosed passage and vertical chimney. The natural draft concentrates heat beneath a pot without using a fan or pressurised gas.
It can be carried, but at approximately 2.55 kg it is better suited to car camping, basecamps, overlanding and emergency kits than to ultralight hiking. The heavier steel construction prioritises durability and cookware support over minimum pack weight.
Its concentrated combustion path can cook with less wood than a broad open fire in comparable conditions. There is no universal percentage because fuel moisture, pot size, wind, user technique and meal type all affect consumption.
The reference configuration supports wood and charcoal. Charcoal use must still be confirmed with the final grate and operating manual. Never use charcoal indoors or in an enclosed area because it produces carbon monoxide.
No wood stove is smoke-free in every condition. Dry fuel, a warm combustion path and clear airflow reduce smoke. Wet wood, poor ignition, overloading and restricted exhaust increase it.
Use stable, flat-bottom outdoor pots, kettles and pans that sit securely on the upper support. The final recommended diameter and filled weight should be established through stability testing on the approved EC-PRS-1 sample.
No. It is a reference static downward-load figure under controlled conditions. Safe cookware weight is much lower and depends on pot diameter, liquid movement, ground level, wind and the stove’s resistance to tipping.
No. EC-PRS-1 is not a tent stove and has no sealed firebox or external flue. Use it outdoors only.
Yes. Direct wood flame and combustion particles normally leave soot on the base of a pot. This is expected for a wood-burning stove.
That depends on local rules, but solid-fuel stoves are often prohibited during fire restrictions. Users must check the campsite, land-management authority and local fire service requirements before lighting.
Yes. High-temperature colour options, permanent logo marking, branded bags, private-label cartons and multilingual manuals can be quoted. Final MOQ and lead time depend on the complete configuration.
Send the destination market, estimated order and annual volume, required cookware range, preferred material and finish, logo method, bag specification, packaging channel, manual languages, test requirements and target delivery date.
